zoom specification
| MODEL | WPC-10 / WPC-20 | |
|---|---|---|
| Applicable fluid | Water, Steam | |
| Maximum applicable pressure | �� 0.98MPa / �� 1.96MPa | |
| Maximum operating temperature | �� 220�� | |
| Internal pressure test | 1.5 MPa / 3.0 MPa at Water Pressure | |
| Material | BODY | BELLOWS - STS304 |
| TRIM | FLANGE - SS400/STS304 | |

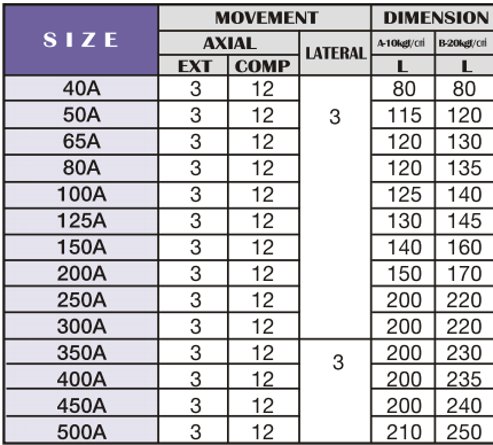

dimensions
