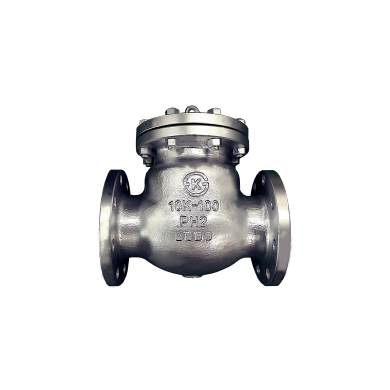

zoom �� Swing Check Valve (1.96MPa / 0.98MPa)
feature
etc
-
�certified product (KS B 2361)
KC Certificate product
specification
| MODEL | WBCP-20 / WBCPN-10 | |
|---|---|---|
| Applicable fluid | Water, Steam, Oil | |
| Maximum applicable pressure | �� 1.96MPa / �� 0.98MPa | |
| Maximum operating temperature | �� 220�� / �� 120�� | |
| Connection method | KS 20K Flanged / KS 10K Flanged | |
| Internal pressure test | 5.3 MPa / 2.1 MPa at Water Pressure | |
| Material | BODY | SCPH2 |
| TRIM | SSC1 | |

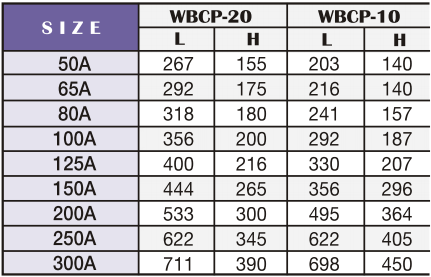

dimensions
