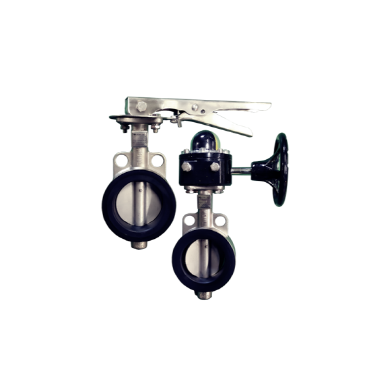

�� Stainless Butterfly valve (Wafer type)

feature

    �� It has excellent air tightness by selecting precision casting processed disc and seat of EPDM.

    �� The range of application is wide because it is made of stainless steel.

    �� You can easily check the opening and closing state by attaching indicator.

    �� Lever and gear types are available.

    �� When using in the fire line, use the fire butterfly valve (16K)

etc

    �� Marked product approved (KS B 2813)

    �� KC hygiene safety standard certification product

specification

MODEL WSBL-1 WSBG-1
Applicable fluid Water Water
Maximum applicable pressure 0.98MPa 0.98MPa
Maximum operating temperature 5�� ~ 90�� 5�� ~ 90��
Connection method KS 10K WAFER KS 10K WAFER
Internal pressure test 1.5 MPa at water pressure 1.5 MPa at water pressure
Material BODY SSC 13 SSC 13
TRIM EPDM / SSC13 EPDM / SSC13

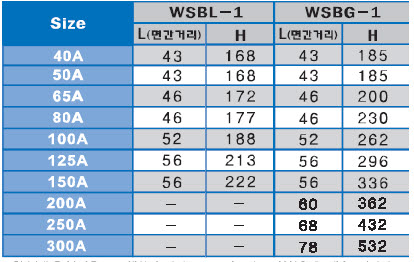

dimensions
