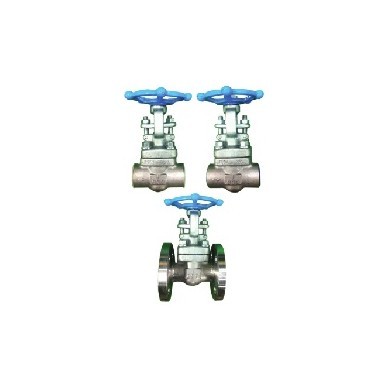

Stainless Forged Steel Gate Valve (Screw, Socket Weld, Flange type)

feature

Product PDF Download

specification

MODEL WFG800R WFG801R WFG815R / WFG830R / WFG860R
Maximum applicable pressure 454 �� : 2.1 MPa / -7��~38�� : 5.18 MPa 454 �� : 2.1 MPa / -7��~38�� : 5.18 MPa 454 �� : 2.1 MPa / -7��~38�� : 5.18 MPa
Connection method Screwed End Socket Weld End Flanged End
Material BODY Stainless Steel - ASTM A 182 Stainless Steel - ASTM A 182 Stainless Steel - ASTM A 182
TRIM 13 Cr. / 304 S.S / 316 S.S 13 Cr. / 304 S.S / 316 S.S 13 Cr. / 304 S.S / 316 S.S

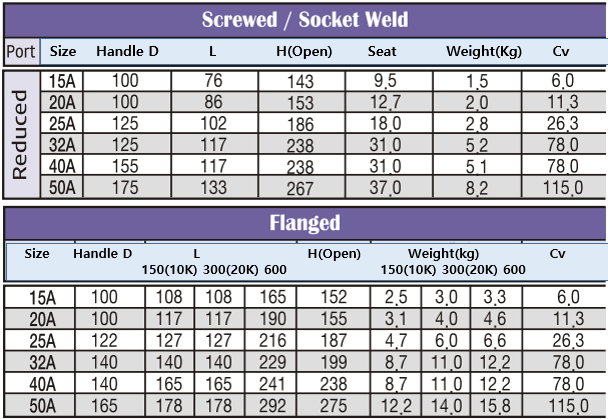

dimensions
