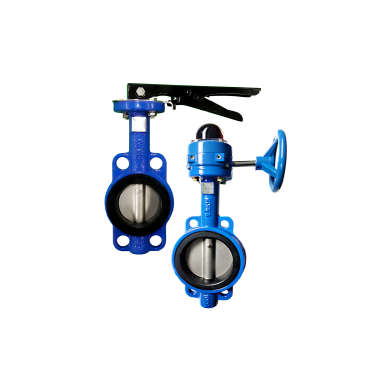

zoom �� Butterfly valve (wafer type) 10K / KOREA
feature
-
�� It has excellent air tightness by selecting precision casting processed disc and seat of EPDM.
�� You can easily check the opening and closing state by attaching indicator.
�� Lever and gear types are available.
�� When using in the fire line, use the fire butterfly valve (16K)
etc
-
�� Marked product approved (KS B 2813)
�� KC hygiene safety standard certification product
�� Q-Mark certified products
specification
| MODEL | WSBL-10 | WSBG-10 | |
|---|---|---|---|
| Applicable fluid | Water | Water | |
| Maximum applicable pressure | �� 0.98MPa | �� 0.98MPa | |
| Maximum operating temperature | 5�� ~ 90�� | 5�� ~ 90�� | |
| Connection method | KS 10K WAFER | KS 10K WAFER | |
| Internal pressure test | 1.5 MPa at water pressure | 1.5 MPa at water pressure | |
| Material | BODY | GC200 | GC200 |
| TRIM | SSC 13 / EPDM | SSC 13 / EPDM | |

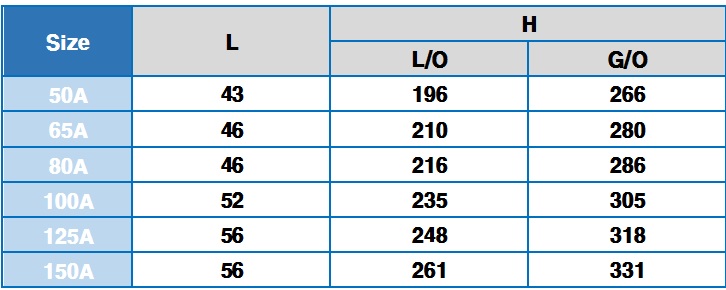

dimensions
information
�� In case of extension, chain type, pneumatic and electric butterfly valve, order production is available.
